Next step for the unique wooden footbridge Passerelle Zwolle

Next step for the unique wooden footbridge Passerelle Zwolle

A significant step has been taken for the new north-south connection and a new sustainable icon for Zwolle. Dura Vermeer will build the substructure of the new passerelle as the winner of the ProRail tender on behalf of the Municipality of Zwolle. The final design for the Passerelle Zwolle has been completed by an integrated design team led by Karres en Brands, together with ipv Delft, Miebach (DE) and Attis. Construction of the passerelle will start in 2023 and will continue until the end of 2024. The 130-metre-long and 10-metre-wide pedestrian bridge over the railway will have a timber construction and the bridge deck will be designed as a park-like public space.

The view from eye level
The shape, construction, and design of the bridge has a radical focus on the view from eye level. The street leading to and from Zwolle railway station is physically extended over the tracks, giving the pedestrian bridge – complete with greenery, water features, and seating areas – the appearance of a ‘raised street’. Engaging with its surroundings, the layout of the bridge deck features a succession of different areas and experiences, with its ‘S’ shape subtly changing the sightlines along the bridge.

Wooden footbridge

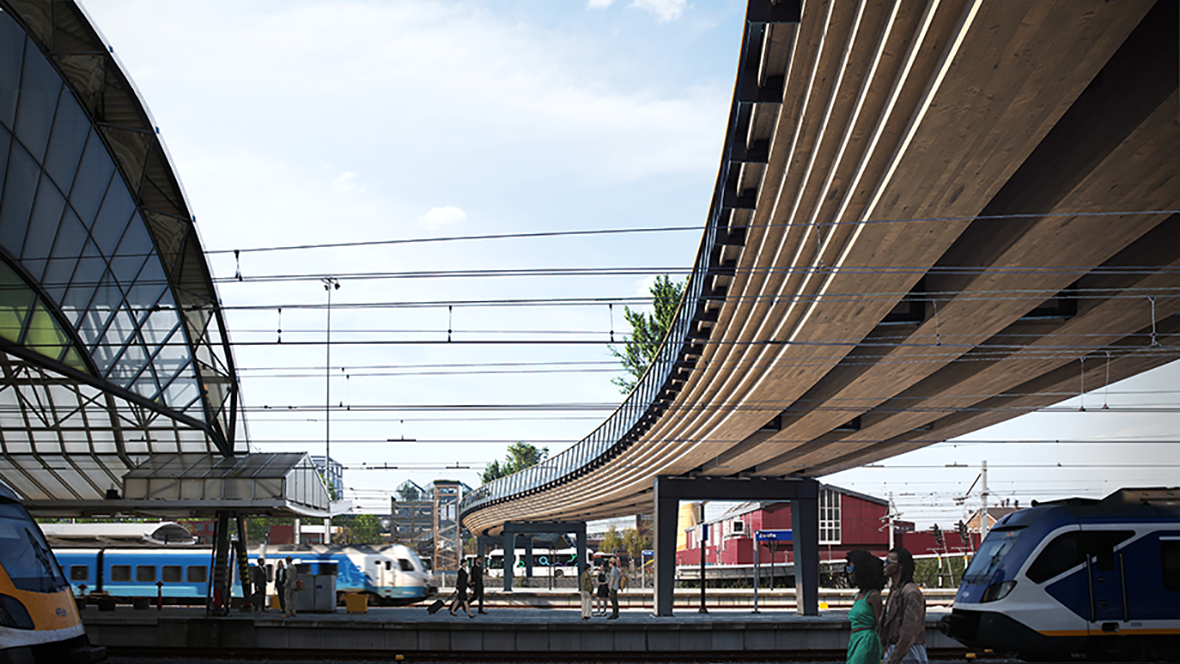

The bridge enhances the sustainable development of the railway station area, embodying the impact of themes such as biodiversity, climate, mobility, inclusiveness, and circularity. The design team focused on creating a tangible expression of these themes. The footbridge is also unique in that it is constructed using European softwood: it has four parallel main girders in laminated-timber, constructed from identical spans of 34 metres. The wood is complemented by black steel details. The 1340-millimetre-high girders are attached together transversely with connectors and supported by black steel portal frames. The lift shafts and robust handrails, which run along the length of the bridge, are also made of wood. Thanks to these design choices, the wooden bridge emits 74% less CO2 compared with a steel bridge.

A ‘roof garden’ on the bridge

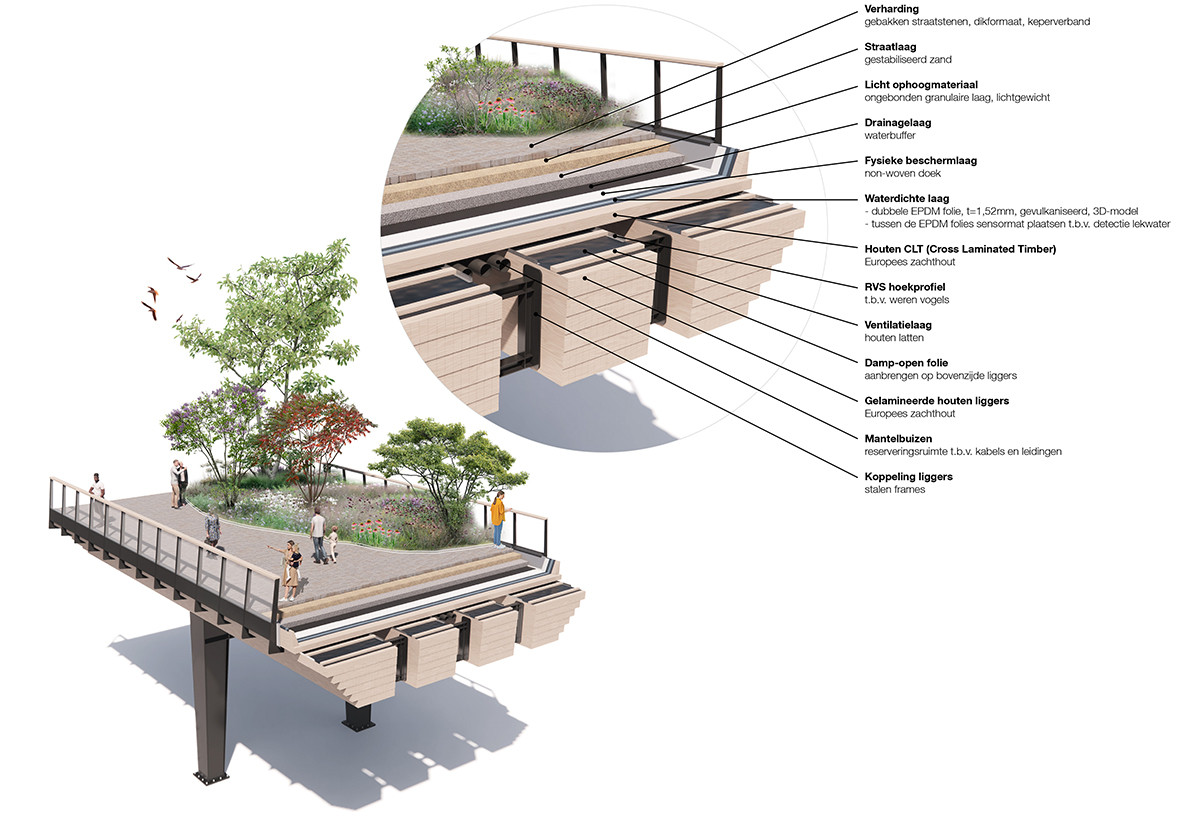

Although a wooden bridge of these dimensions is unique in itself, it goes one step further by combining the wooden supporting structure with a bridge deck in cross-laminated timber (CLT). The top layers of the wooden deck will be waterproof thanks to a double-layer EPDM. A ‘roof garden’ construction on top of the wooden girders provides the basis for healthy soil life. Each season is a unique experience, and the diversity of species and tucked-away spots provide welcome space for birds, bats, and insects. A sophisticated and robust water system, which is also visible to bridge users, feeds the planted areas. That experience of water is present in various forms and includes a water artwork (designed by Zoro Feigl), a water staircase as a play element, and gentle ridges in the gutter to increase the dynamics of water. The foot bridge is inclusive for its human as well as animal users – it is accessible, safe, and attractive for everyone. The transparent balustrade means that even a child can see the surroundings; benches are positioned so that wheelchair users can sit between other people sitting down for a break; and the continuous water channel simultaneously forms a subtle guide line for the blind and visually impaired. Cyclists can comfortably use the spacious lifts. Simply put, this is a bridge for everyone.
